Batch furnaces

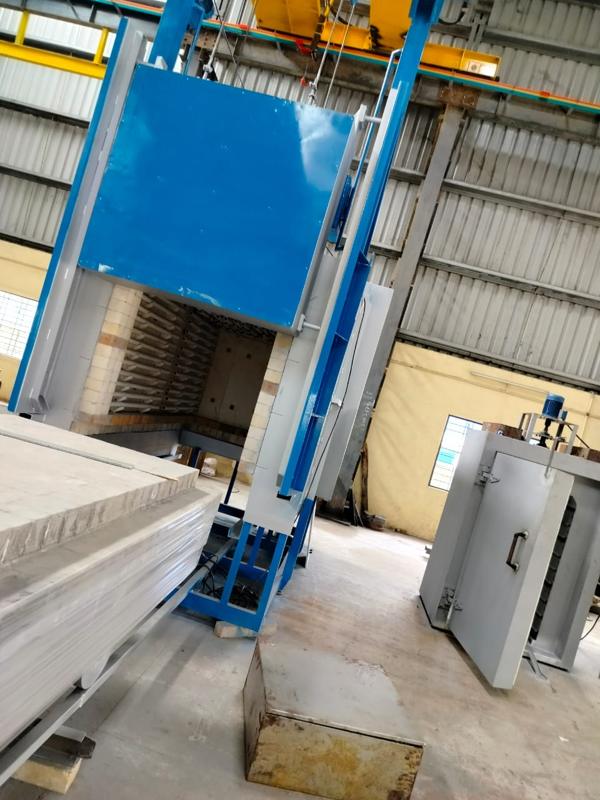

Bogie hearth furnace
Up to 1400 °CA bogie hearth furnace is a chamber furnace with a movable hearth. The load sits on a trolley (the bogie) that rolls out for loading and rolls back in, so very heavy or awkward parts can be handled…
View details
Chamber (box) furnace
Up to 1600 °CChamber furnaces are the general-purpose workhorse of heat treatment. Material is loaded into the chamber, heated through its cycle and unloaded, which suits low to medium volumes and custom-sized parts.
View details
Pit type furnace
600 to 1200 °CPit furnaces stand vertically with the opening at or just above floor level, and are made for work from very small to very large. They are available with or without a retort, in custom dimensions, electric or gas-fired.
View details
High-temperature pit furnace
Up to 1200 °CThis is a sealed retort design: a vertical cylinder with a positive seal on top that keeps both heat and atmosphere inside during the cycle. The charge sits in a retort, which is heated from outside by electric elements or gas.
View detailsLow-temperature pit furnace
Up to 650 °CAir circulation pit furnaces are installed with the opening at or just above ground level and run at up to 650 °C. At these temperatures heat moves mainly by convection, so air is circulated inside…
View details
Sealed quench furnace
Up to 1150 °COur sealed quench line combines preheating and tempering furnaces, a washing machine, a stationary table, hydraulic lifts and automatic charge transfer. It is built for case hardening, carburizing,…
View details
Photo coming soonDrop bottom quench furnace
150 to 750 °CIn a drop bottom furnace the charge is lifted into the heating chamber and lowered straight into a quench tank directly below. This gives the very fast quench needed for the solution treatment of…
View detailsPhoto coming soonRaising hearth furnace
Up to 1900 °CIn an elevator (raising) hearth furnace the charge sits on a hearth that rises into the heating chamber. It moves with very little vibration, which makes it right for brittle or delicate material and…
View details
Muffle furnace
Lab and productionUniform heating, stable high-temperature performance and long service life for industrial heat treatment.
View details
Salt bath furnace
On requestSalt bath furnaces heat parts in a bath of molten salt held in a pot. Size, pot design and temperature are made to order. Contact us with your process so we can recommend a configuration.
View detailsContinuous furnaces
Photo coming soonContinuous air circulation furnace
Up to 850 °CFor constant, high-volume low-temperature work, this furnace carries parts through several controlled zones on a mesh belt, flat belt, pusher or heavy chain. Each zone has its own set point, and heat…
View details
Continuous mesh belt furnace
800 to 1150 °CParts travel on a belt or chain through a preheat zone, several heating zones and cooling zones. Most run under a protective atmosphere: nitrogen or argon for purging, and gases such as cracked…
View detailsPhoto coming soonContinuous pusher furnace
800 to 1800 °COur standard pusher furnace runs up to 1800 °C, and higher temperatures are designed to suit the process. Trays or baskets are pushed through preheat, heating and cooling zones, usually under…
View detailsPhoto coming soonContinuous roller hearth furnace
Up to 1150 °CPowered rollers carry the load through the furnace, so large, heavy parts and long stock such as pipe, tube, strip and slabs can be treated in high volume. Smaller parts travel in trays or baskets.
View detailsPhoto coming soonRotary calciner
Up to 1200 °CA rotating drum or tube heats loose material evenly along its length, in several controlled zones. Lifting flights inside are designed around how sticky or dry the feed is so the material mixes…
View details
Ovens
Chamber oven and hot air oven
Up to 550 °CChamber ovens are low-temperature air circulation ovens for work from baking to ageing. They can be built with a full stainless steel interior for long life. Adjustable or fixed baffles spread air…
View details
Trolley type oven
Low temperatureA rail-mounted trolley carries large, heavy batches in and out of the oven, which makes loading easier for ageing, drying and similar low-temperature work. Size and temperature are made to order.
View detailsFurnace accessories
Photo coming soonMuffles
AccessoryWe design and fabricate muffles for the powder metallurgy industry. The alloy used has high mechanical strength and resists oxidation at high temperature. Muffles are matched to your temperature,…
View detailsPhoto coming soonRetorts
AccessoryWe manufacture cylindrical and rectangular retorts with sealed flanges and pressure sand seals. Rectangular retorts with corrugated side walls are used for industrial components. Retorts come in many…
View detailsPhoto coming soonCharge fixtures
AccessoryAt high temperature some parts can deform under their own weight because their strength falls. Charge fixtures give them the external support they need through the cycle. We design and supply…
View detailsPhoto coming soonThermocouples and temperature sensors
AccessoryWe supply calibrated thermocouples and RTDs for process measurement and control, in standard types, colour codes and lengths. Rigid and flexible versions are available with metal or ceramic sheaths,…
View detailsPhoto coming soonHeating elements and ceramics
AccessoryReplacement heating elements (coil, U-type, silicon carbide and immersion types) and ceramic insulation items such as ceramic fibre blanket and ceramic tubes, supplied for new furnaces and as spares.…
View details
