Bogie Hearth Furnace by Smelter Engineering
In the production of atmosphere heat treatment solutions, SMELTER uses extended experience and state-of-the art technology to simplify installations, reduce investment costs, and reduce process of utilities consumption. Technical solutions of SMELTER furnaces allow our partners to meet the strictest technical requirements and modern technologies, that give them competitive advantage in the industry.

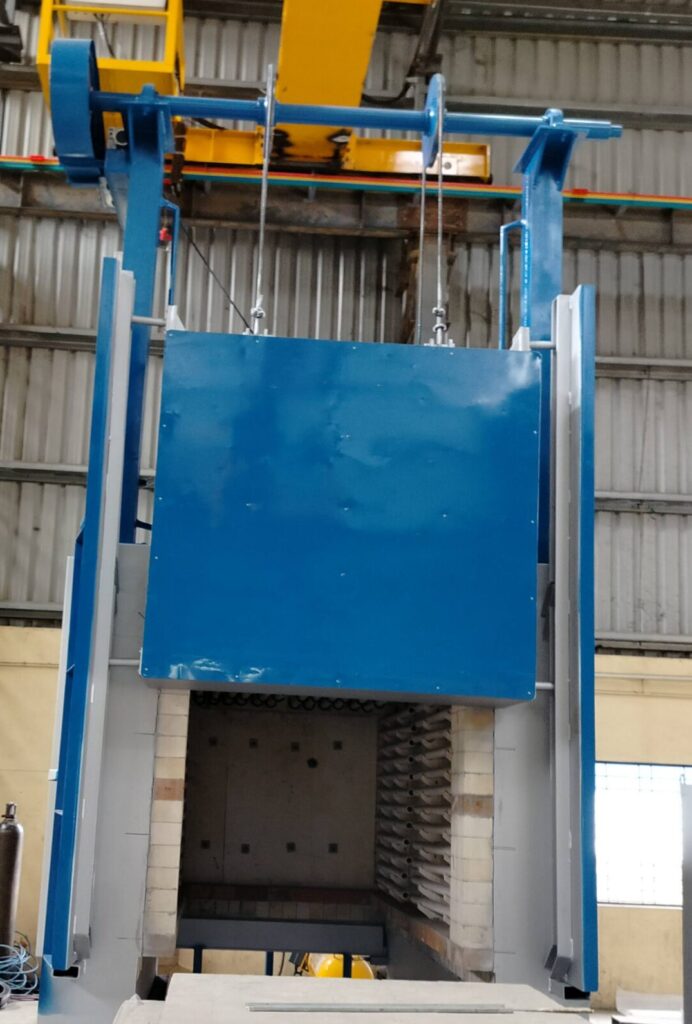

The bogie hearth furnace is offering the heating treatment of the large and heavy components. The bogie hearth is movable and in-out operation helps for the easy loading and unloading of components to the furnace.
The bogie hearth furnace is chamber flexibility is worth emphasizing (i.e., the ability to quick and efficient adaption to the type of study). It will come with the heavy duty electro-mechanical mechanism for the bogie movement with heavy loads. According to the production requirement the furnace will come with the Single or Double door and Single or double bogie hearth. These installations are also very convenient to integrate in production and / or machining lines.
The bogie furnace can be used as an atmosphere and controlled atmosphere as per the application and requirement. The furnace will start from the operating temperature from 100°C to 1400°C, according to the process requirement. This furnace is commonly used for the Sintering, Hardening, annealing, Tempering, Stress relieving and Normalising.
According to the customer reliability and requirement the furnace Heating will be provided through Resistant heating elements, Gas fired or oil-fired burners. The furnace will come with the High temperature resistant sealings to avoiding the heating leakage.
The control system is provided with options to set and control the ramping rate, soaking rate and cooling rate depending on the process cycle, the option of PLC-based control is also available.
Features
Temperature Range from 200°C to 1400°C,
Chamber Design: Cylindrical/Rectangular,
Heating Media option: Resistance Heating/Oil-Fired/Gas-Fired,
Standard Weight capacity: 200 Kg’s to 6,000 Kg’s (Customized available up to the 15,000 Kg’s)
Temperature Uniformity +/-6°C or +/-10°F
Controlled Heating, Forced convection cooling
Manual or Auto Operation with user friendly interface
Friendly programming of the furnace system processes
Instrumentation options: Thyristor, Programmable Temperature Controller, Temperature Recorder, PLC, SCADA, HMI
NADCAP and AMS specifications readiness.
Insulation on Bogie: Deferent layers of Brick lining,
Insulation apart from the bogie: Vacuum Formed ceramic fibre boards/Ceramic fibre blanket & Modules/ Different layers of Brick lining,
Gallery
POSSIBLE APPLICATIONS
- Annealing
- Stress Relieving
- Hardening
- Tempering
- Normalising
- Wire Annealing
- Case Hardening
- Preheating/Preheating for forging
Advantages
- Wide range of heat treatment processes and applications
- Customizable
- Simple design, modular, fitted and adjusted to tasks and plant conditions
- Flexibility of operations
- Easy and precise movement of heavy loads
- Low consumption of energy, process gases and other utilities
- Excellent Temperature uniformity
- High-performance reliability
Why Choose Smelter Engineering?
The answer is simple, Smelter is the best in the business when it comes to custom built furnaces and commercial heat treatment. Customer satisfaction is a guarantee at Smelter.
Through continuous innovation, we have achieved both consistent quality and an impressive clientele across the globe; some of them have been working with us for many years now.
What you avail from us is not just a product but a trustworthy and beneficial vehicle for your success. No matter what the size or sector of your company is, when you work with Smelter, you can be rest assured.
FAQs
What is Bogie Hearth Furnace?
Bogie Hearth Furnace is a special type of chamber furnace. The housing of the furnace can be accessed from one side through a manually or electrically operated moving trolley coupled to a door system.
The trolley or bogie can be designed with virtually any product-specific supports or component tracks. In addition, the loading capacity is almost unlimited.
